Model

Unit

Q30F

Name

-

power relay


-

Dimension

mm

52×47×40 48×53×36 48×34×36

Feature

-

samll volume 、long span、low power consume、                     large current 、wide function

Contact

Form

-

1Z(1C,1H), 2Z(2C,2H)

Overload

-

1Z:28VDC/30A 250VAC/30A 2Z:28VDC/25A 250VAC/25A

Resistance

mΩ

DC24V 1A ≤20mΩ ; ≤50mΩ

Material

-

AgSnO

Coil Voltage

DC

DC

6～220V

AC

AC

6～220V

Coil Power

直流

W

1Z:1.2W 2Z:DC1.6W

交流

VA

1Z, 2Z:2.5VA

Pick-up Voltage

-

DC≤75% ; MAX DC≤90%

Drop-up Voltage

-

DC≥10%，AC≥30% ; MINDC≥5%

Dielectric Strength

AC

1000VAC， 50HZ/min

Between Coil&Contacts

AC

200VAC, 50HZ/min

Ambient Temperature

℃

-40℃～+55℃

Insulation Resistance

MΩ

500MΩ

Span

Mechnical

No.

1×10⁷

Electrical

No.

1×10⁵

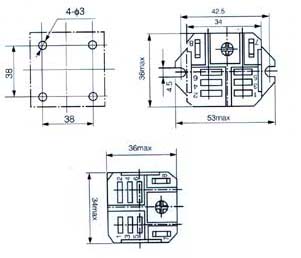

Diagram

mm
